ADX1

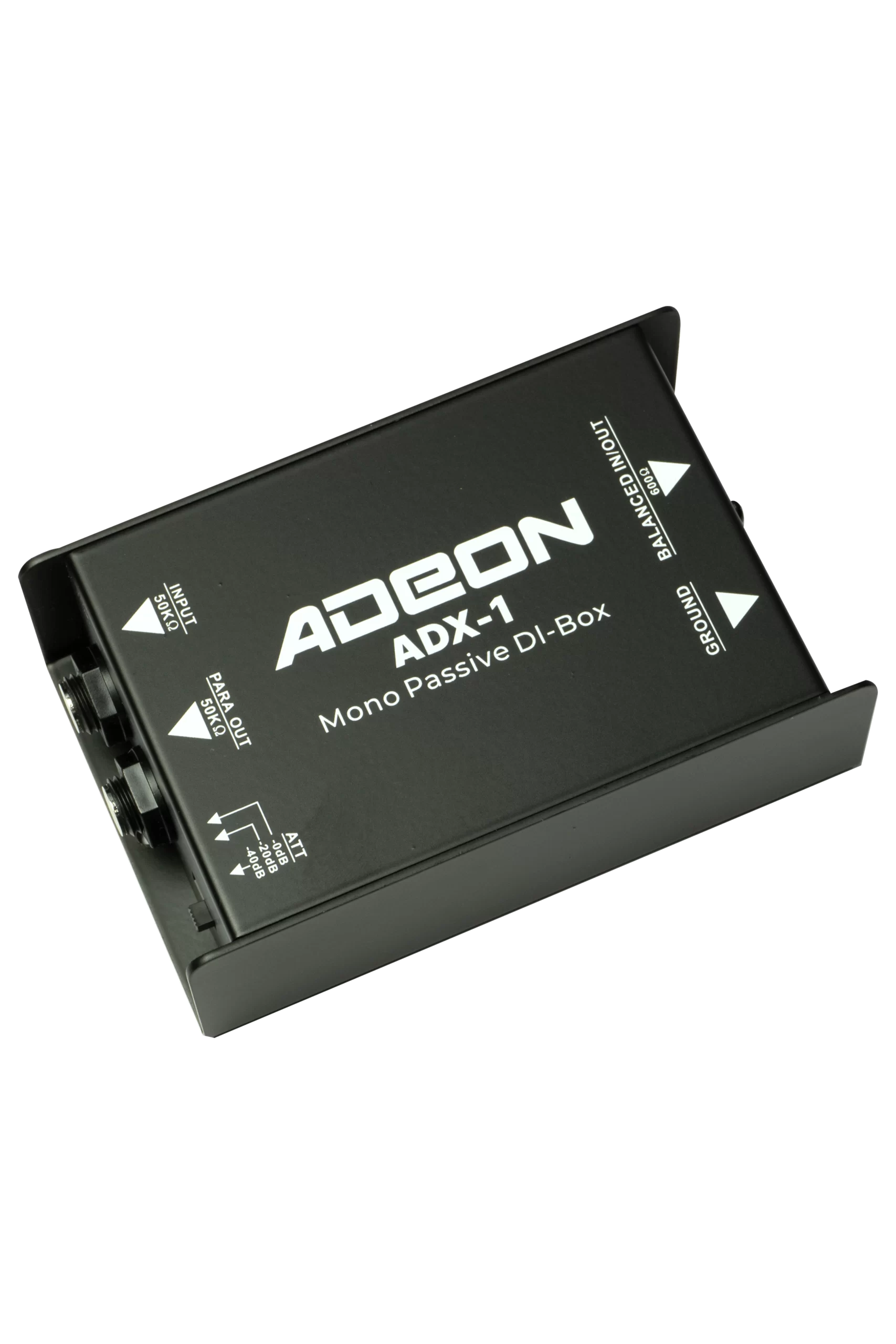

The ADEON ADX‑1 Mono Passive DI Box is a robust, professional-grade solution for adapting unbalanced instrument or line signals to balanced, low‑impedance outputs—perfect for live sound or studio use. Featuring a high input impedance of 50 kΩ and a parallel (thru) output also at 50 kΩ, it seamlessly integrates with pedals or amps. Its balanced XLR input/output at 600 Ω ensures noise‑free signal transmission over long cable runs. The inclusion of a ground‑lift switch helps eliminate hum caused by ground loops. Built with passive circuitry, the ADX‑1 requires no power yet delivers clean, transparent sound with excellent durability
Specs
Mono Passive
DI Box
INPUT
50K Ω Para out 50K Ω
Balanced In/Out
600 Ω (Ground/Lift)


🎧 Mono Passive DI with 50 kΩ Input & Para‑Out
The Adeon ADX‑1 features a 50 kΩ unbalanced input and a 50 kΩ parallel output, allowing you to simultaneously feed both an instrument amplifier and a mixing console. This setup ensures tonal integrity and flexible routing in performance or studio environments
